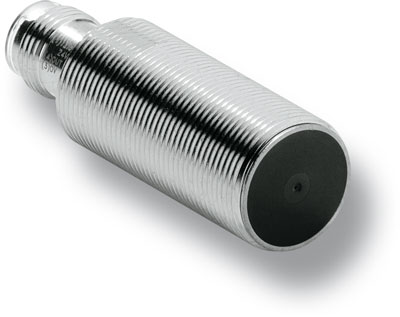

ИНДУКТИВНЫЙ ДАТЧИК OMRON E2A |
Индуктивный датчик приближения в цилиндрическом корпусе из латуни
или нержавеющей стали
|
 |
Индуктивные датчики семейства E2A сконструированы и испытаны в
расчете на длительный срок службы и изготавливаются с неизменно
стабильным качеством. Их модульная конструкция лежит в основе
непревзойденной функциональной гибкости семейства.
|
| |
| ОСОБЕННОСТИ: |
|
Стандартное (одинарное) или увеличенное (двойное) расстояние
срабатывания |
|
IP67 и IP69k для максимальной защиты в условиях повышенной влажности |
|
Неизменно высокий уровень качества благодаря специальному
технологическому процессу производства |
|
Модели на напряжение постоянного тока с 3-проводной (Н.Р., Н.З.),
4-проводной (Н.Р.+Н.З.) и 2-проводной схемой подключения |
|
Широкая область применения благодаря модульной концепции |
|
|
|
ИНДУКТИВНЫЙ ДАТЧИК OMRON E2A |
|
DC 3-wire models |
|
Size |
Sensing
distance |
Conne-
ction |
Body
material |
Thread
length
(overall
length) |
Output
confi-
guration |
Operation mode NO |
Operation mode NC |
|
M8 |
Shiel-
ded |
1.5mm |
Pre-
wired |
Stain-
less
steel*1 |
27 (40) |
PNP |
E2A-S08KS01-WP-B1 2M |
E2A-S08KS01-WP-B2 2M |
|
NPN |
E2A-S08KS01-WP-C1 2M |
E2A-S08KS01-WP-C2 2M |
|
49 (62) |
PNP |
E2A-S08LS01-WP-B1 2M |
E2A-S08LS01-WP-B2 2M |
|
NPN |
E2A-S08LS01-WP-C1 2M |
E2A-S08LS01-WP-C2 2M |
|
M12
conne-
ctor |
27 (43) |
PNP |
E2A-S08KS01-M1-B1 |
E2A-S08KS01-M1-B2 |
|
NPN |
E2A-S08KS01-M1-C1 |
E2A-S08KS01-M1-C2 |
|
49 (65) |
PNP |
E2A-S08LS01-M1-B1 |
E2A-S08LS01-M1-B2 |
|
NPN |
E2A-S08LS01-M1-C1 |
E2A-S08LS01-M1-C2 |
|
M8
conne-
ctor
(3-pin) |
27 (39) |
PNP |
E2A-S08KS01-M5-B1 |
E2A-S08KS01-M5-B2 |
|
NPN |
E2A-S08KS01-M5-C1 |
E2A-S08KS01-M5-C2 |
|
49 (61) |
PNP |
E2A-S08LS01-M5-B1 |
E2A-S08LS01-M5-B2 |
|
NPN |
E2A-S08LS01-M5-C1 |
E2A-S08LS01-M5-C2 |
|
M8
conne-
ctor
(4-pin) |
27 (39) |
PNP |
E2A-S08KS01-M3-B1 |
E2A-S08KS01-M3-B2 |
|
NPN |
E2A-S08KS01-M3-C1 |
E2A-S08KS01-M3-C2 |
|
49 (61) |
PNP |
E2A-S08LS01-M3-B1 |
E2A-S08LS01-M3-B2 |
|
NPN |
E2A-S08LS01-M3-C1 |
E2A-S08LS01-M3-C2 |
|
Non-
shiel-
dede |
2.0mm |
Pre-
wired |
27 (40) |
PNP |
E2A-S08KN02-WP-B1 2M |
E2A-S08KN02-WP-B2 2M |
|
NPN |
E2A-S08KN02-WP-C1 2M |
E2A-S08KN02-WP-C2 2M |
|
49 (62) |
PNP |
E2A-S08LN02-WP-B1 2M |
E2A-S08LN02-WP-B2 2M |
|
NPN |
E2A-S08LN02-WP-C1 2M |
E2A-S08LN02-WP-C2 2M |
|
M12
conne-
ctor |
27 (43) |
PNP |
E2A-S08KN02-M1-B1 |
E2A-S08KN02-M1-B2 |
|
NPN |
E2A-S08KN02-M1-C1 |
E2A-S08KN02-M1-C2 |
|
49 (65) |
PNP |
E2A-S08LN02-M1-B1 |
E2A-S08LN02-M1-B2 |
|
NPN |
E2A-S08LN02-M1-C1 |
E2A-S08LN02-M1-C2 |
|
M8
conne-
ctor
(3-pin) |
27 (39) |
PNP |
E2A-S08KN02-M5-B1 |
E2A-S08KN02-M5-B2 |
|
NPN |
E2A-S08KN02-M5-C1 |
E2A-S08KN02-M5-C2 |
|
49 (61) |
PNP |
E2A-S08LN02-M5-B1 |
E2A-S08LN02-M5-B2 |
|
NPN |
E2A-S08LN02-M5-C1 |
E2A-S08LN02-M5-C2 |
|
M8
conne-
ctor
(4 pin) |
27 (39) |
PNP |
E2A-S08KN02-M3-B1 |
E2A-S08KN02-M3-B2 |
|
NPN |
E2A-S08KN02-M3-C1 |
E2A-S08KN02-M3-C2 |
|
49 (61) |
PNP |
E2A-S08LN02-M3-B1 |
E2A-S08LN02-M3-B2 |
|
NPN |
E2A-S08LN02-M3-C1 |
E2A-S08LN02-M3-C2 |
|
|
|
|
Size |
Sensing
distance |
Conne-
ction |
Body
mate-
rial |
Thread
length
(overall
length) |
Output
confi-
guration |
Operation mode NO |
Operation mode NC |
Operation mode NO+NC |
|
M12 |
Shiel-
ded |
2.0mm |
Pre-
wired |
Brass
*3 |
34 (50) |
PNP |
E2A-M12KS02-WP-B1 2M |
E2A-M12KS02-WP-B2 2M |
E2A-M12KS02-WP-B3 2M |
|
NPN |
E2A-M12KS02-WP-C1 2M |
E2A-M12KS02-WP-C2 2M |
E2A-M12KS02-WP-C3 2M |
|
56 (72) |
PNP |
E2A-M12LS02-WP-B1 2M |
E2A-M12LS02-WP-B2 2M |
E2A-M12LS02-WP-B3 2M |
|
NPN |
E2A-M12LS02-WP-C1 2M |
E2A-M12LS02-WP-C2 2M |
E2A-M12LS02-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KS02-M1-B1 |
E2A-M12KS02-M1-B2 |
E2A-M12KS02-M1-B3 |
|
NPN |
E2A-M12KS02-M1-C1 |
E2A-M12KS02-M1-C2 |
E2A-M12KS02-M1-C3 |
|
56 (70) |
PNP |
E2A-M12LS02-M1-B1 |
E2A-M12LS02-M1-B2 |
E2A-M12LS02-M1-B3 |
|
NPN |
E2A-M12LS02-M1-C1 |
E2A-M12LS02-M1-C2 |
E2A-M12LS02-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KS02-M5-B1 |
E2A-M12KS02-M5-B2 |
n.a. |
|
NPN |
E2A-M12KS02-M5-C1 |
E2A-M12KS02-M5-C2 |
n.a. |
|
56 (70) |
PNP |
E2A-M12LS02-M5-B1 |
E2A-M12LS02-M5-B2 |
n.a. |
|
NPN |
E2A-M12LS02-M5-C1 |
E2A-M12LS02-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KS02-M3-B1 |
E2A-M12KS02-M3-B2 |
n.a. |
|
NPN |
E2A-M12KS02-M3-C1 |
E2A-M12KS02-M3-C2 |
n.a. |
|
56 (70) |
PNP |
E2A-M12LS02-M3-B1 |
E2A-M12LS02-M3-B2 |
n.a. |
|
NPN |
E2A-M12LS02-M3-C1 |
E2A-M12LS02-M3-C2 |
n.a. |
|
Non-
shiel-
dede |
5.0mm |
Pre-
wired |
Brass
*3 |
34 (50) |
PNP |
E2A-M12KN05-WP-B1 2M |
E2A-M12KN05-WP-B2 2M |
E2A-M12KN05-WP-B3 2M |
|
NPN |
E2A-M12KN05-WP-C1 2M |
E2A-M12KN05-WP-C2 2M |
E2A-M12KN05-WP-C3 2M |
|
56 (72) |
PNP |
E2A-M12LN05-WP-B1 2M |
E2A-M12LN05-WP-B2 2M |
E2A-M12LN05-WP-B3 2M |
|
NPN |
E2A-M12LN05-WP-C1 2M |
E2A-M12LN05-WP-C2 2M |
E2A-M12LN05-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KN05-M1-B1 |
E2A-M12KN05-M1-B2 |
E2A-M12KN05-M1-B3 |
|
NPN |
E2A-M12KN05-M1-C1 |
E2A-M12KN05-M1-C2 |
E2A-M12KS05-M1-C3 |
|
56 (70) |
PNP |
E2A-M12LN05-M1-B1 |
E2A-M12LN05-M1-B2 |
E2A-M12LS05-M1-B3 |
|
NPN |
E2A-M12LN05-M1-C1 |
E2A-M12LN05-M1-C2 |
E2A-M12LS05-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KN05-M5-B1 |
E2A-M12KN05-M5-B2 |
n.a. |
|
NPN |
E2A-M12KN05-M5-C1 |
E2A-M12KN05-M5-C2 |
n.a. |
|
56 (70) |
PNP |
E2A-M12LN05-M5-B1 |
E2A-M12LN05-M5-B2 |
n.a. |
|
NPN |
E2A-M12LN05-M5-C1 |
E2A-M12LN05-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
34 (48) |
PNP |
E2A-M12KN05-M3-B1 |
E2A-M12KN05-M3-B2 |
n.a. |
|
NPN |
E2A-M12KN05-M3-C1 |
E2A-M12KN05-M3-C2 |
n.a. |
|
56 (70) |
PNP |
E2A-M12LN05-M3-B1 |
E2A-M12LN05-M3-B2 |
n.a. |
|
NPN |
E2A-M12LN05-M3-C1 |
E2A-M12LN05-M3-C2 |
n.a. |
|
M18 |
Shiel-
ded |
5.0mm |
Pre-
wired |
Brass
*3 |
39 (59) |
PNP |
E2A-M18KS05-WP-B1 2M |
E2A-M18KS05-WP-B2 2M |
E2A-M18KS05-WP-B3 2M |
|
NPN |
E2A-M18KS05-WP-C1 2M |
E2A-M18KS05-WP-C2 2M |
E2A-M18KS05-WP-C3 2M |
|
61 (81) |
PNP |
E2A-M18LS05-WP-B1 2M |
E2A-M18LS05-WP-B2 2M |
E2A-M18LS05-WP-B3 2M |
|
NPN |
E2A-M18LS05-WP-C1 2M |
E2A-M18LS05-WP-C2 2M |
E2A-M18LS05-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KS05-M1-B1 |
E2A-M18KS05-M1-B2 |
E2A-M18KS05-M1-B3 |
|
NPN |
E2A-M18KS05-M1-C1 |
E2A-M18KS05-M1-C2 |
E2A-M18KS05-M1-C3 |
|
61 (75) |
PNP |
E2A-M18LS05-M1-B1 |
E2A-M18LS05-M1-B2 |
E2A-M18LS05-M1-B3 |
|
NPN |
E2A-M18LS05-M1-C1 |
E2A-M18LS05-M1-C2 |
E2A-M18LS05-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KS05-M5-B1 |
E2A-M18KS05-M5-B2 |
n.a. |
|
NPN |
E2A-M18KS05-M5-C1 |
E2A-M18KS05-M5-C2 |
n.a. |
|
61 (75) |
PNP |
E2A-M18LS05-M5-B1 |
E2A-M18LS05-M5-B2 |
n.a. |
|
NPN |
E2A-M18LS05-M5-C1 |
E2A-M18LS05-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KS05-M3-B1 |
E2A-M18KS05-M3-B2 |
n.a. |
|
NPN |
E2A-M18KS05-M3-C1 |
E2A-M18KS05-M3-C2 |
n.a. |
|
61 (75) |
PNP |
E2A-M18LS05-M3-B1 |
E2A-M18LS05-M3-B2 |
n.a. |
|
NPN |
E2A-M18LS05-M3-C1 |
E2A-M18LS05-M3-C2 |
n.a. |
|
Non-
shiel-
dede |
10.0mm |
Pre-
wired |
Brass
*3 |
39 (59) |
PNP |
E2A-M18KN10-WP-B1 2M |
E2A-M18KN10-WP-B2 2M |
E2A-M18KN10-WP-B3 2M |
|
NPN |
E2A-M18KN10-WP-C1 2M |
E2A-M18KN10-WP-C2 2M |
E2A-M18KN10-WP-C3 2M |
|
61 (81) |
PNP |
E2A-M18LN10-WP-B1 2M |
E2A-M18LN10-WP-B2 2M |
E2A-M18LN10-WP-B3 2M |
|
NPN |
E2A-M18LN10-WP-C1 2M |
E2A-M18LN10-WP-C2 2M |
E2A-M18LN10-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KN10-M1-B1 |
E2A-M18KN10-M1-B2 |
E2A-M18KN10-M1-B3 |
|
NPN |
E2A-M18KN10-M1-C1 |
E2A-M18KN10-M1-C2 |
E2A-M18KS10-M1-C3 |
|
61 (75) |
PNP |
E2A-M18LN10-M1-B1 |
E2A-M18LN10-M1-B2 |
E2A-M18LS10-M1-B3 |
|
NPN |
E2A-M18LN10-M1-C1 |
E2A-M18LN10-M1-C2 |
E2A-M18LS10-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KN10-M5-B1 |
E2A-M18KN10-M5-B2 |
n.a. |
|
NPN |
E2A-M18KN10-M5-C1 |
E2A-M18KN10-M5-C2 |
n.a. |
|
61 (75) |
PNP |
E2A-M18LN10-M5-B1 |
E2A-M18LN10-M5-B2 |
n.a. |
|
NPN |
E2A-M18LN10-M5-C1 |
E2A-M18LN10-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
39 (53) |
PNP |
E2A-M18KN10-M3-B1 |
E2A-M18KN10-M3-B2 |
n.a. |
|
NPN |
E2A-M18KN10-M3-C1 |
E2A-M18KN10-M3-C2 |
n.a. |
|
61 (75) |
PNP |
E2A-M18LN10-M3-B1 |
E2A-M18LN10-M3-B2 |
n.a. |
|
NPN |
E2A-M18LN10-M3-C1 |
E2A-M18LN10-M3-C2 |
n.a. |
|
M30 |
Shiel
ded |
10.0mm |
Pre-
wired |
Brass
*3 |
44 (64) |
PNP |
E2A-M30KS10-WP-B1 2M |
E2A-M30KS10-WP-B2 2M |
E2A-M30KS10-WP-B3 2M |
|
NPN |
E2A-M30KS10-WP-C1 2M |
E2A-M30KS10-WP-C2 2M |
E2A-M30KS10-WP-C3 2M |
|
66 (86) |
PNP |
E2A-M30LS10-WP-B1 2M |
E2A-M30LS10-WP-B2 2M |
E2A-M30LS10-WP-B3 2M |
|
NPN |
E2A-M30LS10-WP-C1 2M |
E2A-M30LS10-WP-C2 2M |
E2A-M30LS10-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
44 (58) |
PNP |
E2A-M30KS10-M1-B1 |
E2A-M30KS10-M1-B2 |
E2A-M30KS10-M1-B3 |
|
NPN |
E2A-M30KS10-M1-C1 |
E2A-M30KS10-M1-C2 |
E2A-M30KS10-M1-C3 |
|
66 (80) |
PNP |
E2A-M30LS10-M1-B1 |
E2A-M30LS10-M1-B2 |
E2A-M30LS10-M1-B3 |
|
NPN |
E2A-M30LS10-M1-C1 |
E2A-M30LS10-M1-C2 |
E2A-M30LS10-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
44 (58) |
PNP |
E2A-M30KS10-M5-B1 |
E2A-M30KS10-M5-B2 |
n.a. |
|
NPN |
E2A-M30KS10-M5-C1 |
E2A-M30KS10-M5-C2 |
n.a. |
|
66 (80) |
PNP |
E2A-M30LS10-M5-B1 |
E2A-M30LS10-M5-B2 |
n.a. |
|
NPN |
E2A-M30LS10-M5-C1 |
E2A-M30LS10-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
44 (58) |
PNP |
E2A-M30KS10-M3-B1 |
E2A-M30KS10-M3-B2 |
n.a. |
|
NPN |
E2A-M30KS10-M3-C1 |
E2A-M30KS10-M3-C2 |
n.a. |
|
66 (80) |
PNP |
E2A-M30LS10-M3-B1 |
E2A-M30LS10-M3-B2 |
n.a. |
|
NPN |
E2A-M30LS10-M3-C1 |
E2A-M30LS10-M3-C2 |
n.a. |
|
Non-
shiel-
dede |
18.0mm |
Pre-
wired |
Brass
*3 |
44 (64) |
PNP |
E2A-M30KN18-WP-B1 2M |
E2A-M30KN18-WP-B2 2M |
E2A-M30KN18-WP-B3 2M |
|
NPN |
E2A-M30KN18-WP-C1 2M |
E2A-M30KN18-WP-C2 2M |
E2A-M30KN18-WP-C3 2M |
|
66 (86) |
PNP |
E2A-M30LN18-WP-B1 2M |
E2A-M30LN18-WP-B2 2M |
E2A-M30LN18-WP-B3 2M |
|
NPN |
E2A-M30LN18-WP-C1 2M |
E2A-M30LN18-WP-C2 2M |
E2A-M30LN18-WP-C3 2M |
|
M12
conne-
ctor |
Brass
*3 |
44 (58) |
PNP |
E2A-M30KN18-M1-B1 |
E2A-M30KN18-M1-B2 |
E2A-M30KN18-M1-B3 |
|
NPN |
E2A-M30KN18-M1-C1 |
E2A-M30KN18-M1-C2 |
E2A-M30KN18-M1-C3 |
|
66 (80) |
PNP |
E2A-M30LN18-M1-B1 |
E2A-M30LN18-M1-B2 |
E2A-M30LN18-M1-B3 |
|
NPN |
E2A-M30LN18-M1-C1 |
E2A-M30LN18-M1-C2 |
E2A-M30LN18-M1-C3 |
|
M8
conne-
ctor
(3-pin) |
Brass
*3 |
44 (58)
(See
note) |
PNP |
E2A-M30KN18-M5-B1 |
E2A-M30KN18-M5-B2 |
n.a. |
|
NPN |
E2A-M30KN18-M5-C1 |
E2A-M30KN18-M5-C2 |
n.a. |
|
66 (80) |
PNP |
E2A-M30LN18-M5-B1 |
E2A-M30LN18-M5-B2 |
n.a. |
|
NPN |
E2A-M30LN18-M5-C1 |
E2A-M30LN18-M5-C2 |
n.a. |
|
M8
conne-
ctor
(4-pin) |
Brass
*3 |
44 (58)
(See
note) |
PNP |
E2A-M30KN18-M3-B1 |
E2A-M30KN18-M3-B2 |
n.a. |
|
NPN |
E2A-M30KN18-M3-C1 |
E2A-M30KN18-M3-C2 |
n.a. |
|
66 (80) |
PNP |
E2A-M30LN18-M3-B1 |
E2A-M30LN18-M3-B2 |
n.a. |
|
NPN |
E2A-M30LN18-M3-C1 |
E2A-M30LN18-M3-C2 |
n.a. |
|
|
|
|
ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON E2A |
|
Технические данные OMRON
E2A (1
142 kb) |
|
Технические данные OMRON
E2A (Single Sensing Distance) (English) (763 kb) |
|
НАЗАД
>>> |
| |
