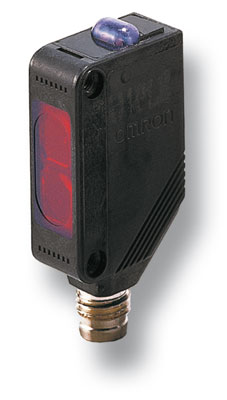

ФОТОЭЛЕКТРИЧЕСКИЙ ДАТЧИК OMRON E3Z

Sensing method

Appearance

Connection method

Sensing distance

Model

NPN output

PNP output

Through-beam

Pre-wired (2 m) *3, *4

E3Z-T61 *5, *6

E3Z-T81

Connector (M8, 4 pins)

E3Z-T66

E3Z-T86

Pre-wired (2 m) *3

E3Z-T61A *5

E3Z-T81A

Connector (M8, 4 pins)

E3Z-T66A

E3Z-T86A

Pre-wired (2 m) *3

E3Z-T62

E3Z-T82

Connector (M8, 4 pins)

E3Z-T67

E3Z-T87

Pre-wired (2 m) *3

E3Z-T62-G0

E3Z-T82-G0

Connector (M8, 4 pins)

E3Z-T67-G0

E3Z-T87-G0

Oil-resistive
Through-beam

Pre-wired (2 m)

E3Z-T61K

E3Z-T81K

Pre-wired Connector
(M8, 4 pins)

E3Z-T61K-M3J

E3Z-T81K-M3J

Retro-reflective
with MSR function

Pre-wired (2 m) *3, *4

E3Z-R61 *5, *6

E3Z-R81

Connector (M8, 4 pins)

E3Z-R66

E3Z-R86

Oil-resistive
Retro-reflective
with MSR function

Pre-wired (2 m)

E3Z-R61K

E3Z-R81K

Pre-wired Connector
(M8, 4 pins)

E3Z-R61K-M3J

E3Z-R81K-M3J

Diffuse-reflective

Pre-wired (2 m) *3, *4

E3Z-D61 *5, *6

E3Z-D81

Connector (M8, 4 pins)

E3Z-D66

E3Z-D86

Pre-wired (2 m) *3, *4

E3Z-D62 *5, *6

E3Z-D82

Connector (M8, 4 pins)

E3Z-D67

E3Z-D87

Oil-resistive
Diffuse-reflective

Pre-wired (2 m)

E3Z-D61K

E3Z-D81K

Pre-wired Connector
(M8, 4 pins)

E3Z-D61K-M3J

E3Z-D81K-M3J

Pre-wired (2 m)

E3Z-D62K

E3Z-D82K

Pre-wired Connector
(M8, 4 pins)

E3Z-D62K-M3J

E3Z-D82K-M3J

Distance-settable

Pre-wired (2 m) *3

E3Z-LS61 *5

E3Z-LS81

Standard M8
Connector

E3Z-LS66

E3Z-LS86

Pre-wired (2 m) *3

E3Z-LS63

E3Z-LS83

Standard M8
Connector

E3Z-LS68

E3Z-LS88

Narrow-beam
Reflective

Pre-wired (2 m) *3

E3Z-L61 *5

E3Z-L81

Standard M8
Connector

E3Z-L66

E3Z-L86

Retro-reflective
without MSR
function for clear,
plastic bottles

Pre-wired (2 m) *3

E3Z-B61 *5

E3Z-B81

Standard M8
Connector

E3Z-B66

E3Z-B86

Pre-wired (2 m) *3

E3Z-B62 *5

E3Z-B82

Standard M8
Connector

E3Z-B67

E3Z-B87

Slit-type
Through-beam

1 axis

Pre-wired (2 m) *3

E3Z-G61 *5

E3Z-G81

2 axes

E3Z-G62 *5

E3Z-G82

1 axis

Standard M8
Connector

E3Z-G61-M3J

E3Z-G81-M3J

2 axes

E3Z-G62-M3J

E3Z-G82-M3J

Slit width

Sensing distance

Minimum detectable
object (typical)

Model

Contents

E3Z-T[][]

E3Z-T[][]A

0.5 mm dia.

50 mm

35 mm

0.2 mm dia.

E39-S65A

One set
(contains Slits for both
the Emitter and Receiver)

1 mm dia.

200 mm

150 mm

0.4 mm dia.

E39-S65B

2 mm dia.

800 mm

550 mm

0.7 mm dia.

E39-S65C

0.5 × 10 mm

1 m

700 mm

0.2 mm dia.

E39-S65D

1 × 10 mm

2.2 m

1.5 m

0.5 mm dia.

E39-S65E

2 × 10 mm

5 m

3.5 m

0.8 mm dia.

E39-S65F

Name

E3Z-R
Sensing distance
(typical) *

Model

Quantity

Remarks

Reflector

3 m (100 mm)
(rated value)

E39-R1

1

Retro-reflective models are not provided with Reflectors.

The MSR function is enabled.

4 m (100 mm)
(rated value)

E39-R1S

1

5 m (100 mm)

E39-R2

1

2.5 m (100 mm)

E39-R9

1

3.5 m (100 mm)

E39-R10

1

Fog Preventive
Coating

3 m (100 mm)

E39-R1K

1

Small Reflector

1.5 m (50 mm)

E39-R3

1

Tape Reflector

700 mm (150 mm)

E39-RS1

1

1.1 m (150 mm)

E39-RS2

1

1.4 m (150 mm)

E39-RS3

1

Sensing
distance

Appearance/
Dimensions

Model

Quantity

Remarks

3 m

E39-E11

Two sets each for the
Emitter and Receiver
(total of four pieces)

Can be used with the E3Z-T[][]A Through-beam
models. The arrow indicates the direction of
polarized light. Mutual interference can be
prevented by altering the direction of polarized
light from or to adjacent Emitters and Receivers.

Appearance

Model

Quantity

Remarks

E39-L153

1

Mounting Brackets

E39-L104

1

E39-L43

1

Horizontal Mounting Brackets *

E39-L142

1

Horizontal Protective Cover Bracket *

E39-L44

1

Rear Mounting Bracket

E39-L98

1

Metal Protective Cover Bracket *

E39-L150

1 set

(Sensor adjuster)

Easily mounted to the aluminum frame rails of conveyors and easily adjusted.

For left to right adjustment

E39-L151

1 set

E39-L144

1

Compact Protective Cover Bracket (For E3Z only) *

Size

Cable

Appearance

Cable type

Model

M8 *

Standard

2 m

4-wire

XS3F-M421-402-A

5 m

XS3F-M421-405-A

2 m

XS3F-M422-402-A

5 m

XS3F-M422-405-A

M12 *
(For -M1J models)

2 m

3-wire

XS2F-D421-DC0-A

5 m

XS2F-D421-GC0-A

2 m

XS2F-D422-DC0-A

5 m

XS2F-D422-GC0-A

e-CON

2 m

4-wire

E39-ECON2M

5 m

E39-ECON5M

0.5 to 1 m

E39-ECONW[]M

[] indicates cable length
(in units of m). Specify
with 0.1-increments.

1.1 to 1.5 m

1.6 to 2 m
