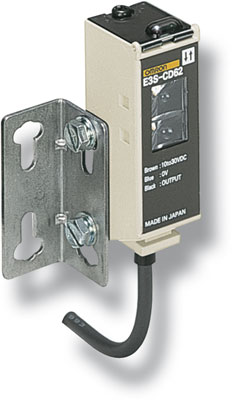

ФОТОЭЛЕКТРИЧЕСКИЙ ДАТЧИК OMRON E3S-C

Sensing method

Appearance

Connection method

Sensing distance

Model

Through-beam

Horizontal

Pre-wired

E3S-CT11

Pre-wired Connector (M12)

E3S-CT11-M1J

Vertical

Pre-wired

E3S-CT61

Pre-wired Connector (M12)

E3S-CT61-M1J

Retro-reflective

Horizontal

Pre-wired

E3S-CR11

Pre-wired Connector (M12)

E3S-CR11-M1J

Vertical

Pre-wired

E3S-CR61

Pre-wired Connector (M12)

E3S-CR61-M1J

Diffuse-reflective

Horizontal

Pre-wired

E3S-CD11

E3S-CD12

Pre-wired Connector (M12)

E3S-CD11-M1J

E3S-CD12-M1J

Vertical

Pre-wired

E3S-CD61

E3S-CD62

Pre-wired Connector (M12)

E3S-CD61-M1J

E3S-CD62-M1J

Slit width

Sensing
distance

Minimum
detectable
object (typical)

Model

Quantity

Remarks

0.5 mm × 11 mm

1.8 m

0.5-mm dia.

E39-S61

1 set each for Emitter
and Receiver
(8 Slits total)

(Snap-in Long Slit)
Can be used with the
E3S-CT[]1(-M1J)
Through-beam Sensor.
Refer to Dtasheet.

1 mm × 11 mm

3.5 m

1-mm dia.

2 mm × 11 mm

7 m

2-mm dia.

4 mm × 11 mm

15 m

2.6-mm dia.

Name

Sensing distance (typical)

Model

Quantity

Remarks

Reflectors

3 m (rated value)

E39-R1

1

Provided with the E3S-CR[]1(-M1J)
Retro-reflective Sensor.

4 m

E39-R2

1

---

Small Reflectors

1.5 m

E39-R3

1

---

750 mm

E39-R4

1

---

Tape Reflectors

700 mm (50 mm) *

E39-RS1

1

Enables MSR function.

1,100 mm (100 mm) *

E39-RS2

1

1,400 mm (100 mm) *

E39-RS3

1

Appearance

Model

Quantity

Remarks

E39-L102

1

Provided with Horizontal Models.

E39-L103

1

Provided with Vertical Models.

E39-L85

1

Mounting bracket for changing from E3S-[][][][][]42/44
to E3S-C Vertical Models.

E39-L86

1

Mounting bracket for changing from E3S-[][][][][]43
to E3S-C Vertical Models.

E39-L87

1

---

Cable

Appearance

Cable type

Model

Standard

2 m

3-wire

XS2F-D421-DC0-A

5 m

XS2F-D421-GC0-A

2 m

XS2F-D422-DC0-A

5 m

XS2F-D422-GC0-A
