ПРОГРАММИРУЕМЫЙ ЛОГИЧЕСКИЙ КОНТРОЛЛЕР
CJ1 OMRON
|

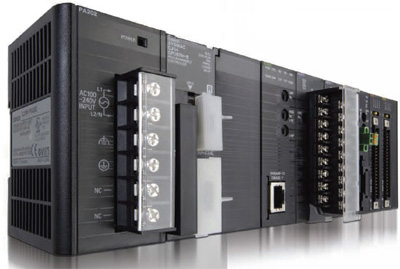

OMRON CJ1 - компактный модульный ПЛК
Omron
|
|
Младшие члены семейства контроллеров OMRON
CJ1 полностью совместимы "снизу-вверх" с сериями ПЛК
CJ1G/H и CS1 по набору команд программирования и команд
связи, а также в части организации памяти. Теперь модульная
концепция может быть полностью реализована даже на уровне небольших
систем, что позволяет сократить затраты на модернизацию, расширение
или перенастройку системы, поскольку эти операции не влекут за собой
полную реконструкцию системы управления.
|
|
ОСОБЕННОСТИ: |
Модульные ПЛК для небольших систем, совместимые с серией CJ1G/H |
Модули центральных процессоров со встроенными импульсными входами и
выходами для быстрой и простой реализации позиционирования и
управления перемещениями и с портом для простого подключения к сети
Ethernet. |
Программирование на языке структурированного текста в соответствии с
IEC 61131-3, обширная библиотека функциональных блоков |
Гнездо для компактной карты памяти CompactFlash, предназначенной для
хранения данных и обмена программами. |
|
Контроллеры OMRON CJ1 |
Модули ЦПУ CJ1 OMRON |
Name |
Specifications |
Current
consumption
(A) |
Model
number |
International
standards |
Maximum
number of I/O
points and
mountable
Units (No. of
Expansion
Racks) |
Program
capacity |
Data
area
memory
capacity |
LD
execution
time |
5 V
system |
24 V
system |
CJ1-H-R
CPU
Units
|
2,560 I/O points
and 40 Units
max.
(3
Expansion
Racks max.) |
250K
steps |
448K
words
DM: 32K
words
EM: 32K
words ×
13 banks |
0.016 μ s |
0.99
(See
note.) |
--- |
CJ1H-CPU67H-R |
UC1, CE,
N, L |
120K
steps |
256K
words
DM: 32K
words
EM: 32K
words ×
7 banks |
CJ1H-CPU66H-R |
60K
steps |
128K
words
DM: 32K
words
EM: 32K
words ×
3 banks |
CJ1H-CPU65H-R |
30K
steps |
64K
words
DM: 32K
words
EM: 32K
words ×
1 bank |
CJ1H-CPU64H-R |
CJ1H-H
CPU
Units
|
2,560 I/O points
and 40 Units
max.
(3
Expansion
Racks max.) |
250K
steps |
448K
words
DM: 32K
words
EM: 32K
words ×
13 banks |
0.02 μ s |
0.99
(See
note.) |
--- |
CJ1H-CPU67H |
UC1, CE,
N, L |
120K
steps |
256K
words
DM: 32K
words
EM: 32K
words ×
7 banks |
CJ1H-CPU66H |
60K
steps |
128K
words
DM: 32K
words
EM: 32K
words ×
3 banks |
CJ1H-CPU65H |
CJ1G-H
CPU
Units
|
1,280 I/O points
and 40 Units
max.
(1
Expansion
Rack max.) |
60K
steps |
128K
words
DM: 32K
words
EM: 32K
words ×
3 banks |
0.04 μ s |
0.91
(See
note.) |
--- |
CJ1G-CPU45H |
UC1, CE,
N, L |
30K
steps |
64K
words
DM: 32K
words
EM: 32K
words ×
1 bank |
CJ1G-CPU44H |
960 I/O points
and 30 Units
max.
(2
Expansion
Racks max.) |
20K
steps |
CJ1G-CPU43H |
10K
steps |
CJ1G-CPU42H |
CJ1M
CPU
Units
|
640 I/O points
and 20 Units
max.
(1
Expansion
Rack max.) |
20K
steps |
32K
words
DM: 32K
words
EM: None |
0.1 μ s |
0.58
(See
note.) |
--- |
CJ1M-CPU13 |
UC1, CE,
N, L |
320 I/O points
and 10 Units
max.
(No
Expansion Racks) |
10K
steps |
CJ1M-CPU12 |
160 I/O points
and 10 Units
max.
(No
Expansion Racks) |
5K
steps |
CJ1M-CPU11 |
|
Блоки питания CJ1 |
Product
name |
Power
supply
voltage |
Output
capacity |
Options |
Model |
Standards |
5-VDC
output
capacity |
24-VDC
output
capacity |
Total
power
consumption |
24-VDC
service
power
supply |
RUN
output |
Maintenance
forecast
monitor |
AC
Power
Supply
Unit |
|
100 to
240
VAC |
5 A |
0.8 A |
25 W |
No |
No |
Yes |
CJ1W-PA205C |
UC1, N,
L, CE |
|
Yes |
No |
CJ1W-PA205R |
|
2.8 A |
0.4 A |
14 W |
No |
No |
CJ1W-PA202 |
DC
Power
Supply
Unit |
|
24
VDC |
5 A |
0.8 A |
25 W |
No |
No |
CJ1W-PD025 |
|
2 A |
0.4 A |
19.6 W |
No |
No |
CJ1W-PD022 |
UC1, CE |
|
МОДУЛИ |
Модули ввода |
Unit
type |
Product
name |
Specifications |
Current
consump-
tion (A) |
Model |
Standards |
I/O
points |
Input
voltage
and current |
Commons |
External
connection |
No. of
words
allocated |
5 V |
24 V |
CJ1
Basic
I/O
Units |
DC
Input
Units
|
8 inputs |
12 to 24
VDC,
10 mA |
Independent
contacts |
Removable
terminal
block |
1 word |
0.09 |
--- |
CJ1W-ID201 |
UC1, N,
L, CE |
16 inputs |
24 VDC, 7
mA |
16 points,
1 common |
Removable
terminal
block |
1 word |
0.08 |
--- |
CJ1W-ID211 |
16 inputs
(High speed) |
24 VDC, 7
mA |
16 points,
1 common |
Removable
terminal
block |
1 word |
0.13 |
--- |
CJ1W-ID212 |
N, L, CE |
32 inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
Fujitsu
connector |
2 words |
0.09 |
--- |
CJ1W-ID231 |
UC1, N,
L, CE |
32 inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
MIL
connector |
2 words |
0.09 |
--- |
CJ1W-ID232 |
32 inputs
(High speed) |
24 VDC, 4.1
mA |
16 points,
1 common |
MIL
connector |
2 words |
0.2 |
--- |
CJ1W-ID233 |
N, L, CE |
64 inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
Fujitsu
connector |
4 words |
0.09 |
--- |
CJ1W-ID261 |
UC1, N,
L, CE |
64 inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
MIL
connector |
4 words |
0.09 |
--- |
CJ1W-ID262 |
AC
Input
Units
|
8 inputs |
200 to 24 VAC,
10 mA (200 V,
50 Hz) |
8 points,
1 common |
Removable
terminal
block |
1 words |
0.08 |
--- |
CJ1W-IA201 |
16 inputs |
100 to 120 VAC,
7 mA (100 V,
50 Hz) |
16 points,
1 common |
Removable
terminal
block |
1 words |
0.09 |
--- |
CJ1W-IA111 |
|
Коннекторы Fujitsu Connectors for 32-input, 32-output, 64-input,
64-output, 32-input/32-output, and 16-input/16-output Units |
Name |
Connection |
Remarks |
Applicable Units |
Model |
Stand-
ards |
40-pin
Connectors |
Soldered |
FCN-361J040-AU |
Connector |
Fujitsu Connectors:
CJ1W-ID231(32 inputs): 1 per Unit
CJ1W-ID261 (64 inputs): 2 per Unit
CJ1W-OD231 (32 outputs):1 per Unit
CJ1W-OD261 (64 outputs): 2 per Unit
CJ1W-MD261 (32 inputs, 32 outputs):
2 per Unit |
C500-CE404 |
--- |
FCN-360C040-J2 |
Connector
Cover |
Crimped |
FCN-363J040 |
Housing |
C500-CE405 |
FCN-363J-AU |
Contactor |
FCN-360C040-J2 |
Connector
Coverr |
Pressure
welded |
FCN-367J040-AU/F |
C500-CE403 |
24-pin
Connectors |
Soldered |
FCN-361J024-AU |
Connector |
Fujitsu Connectors:
CJ1W-MD231 (16 inputs, 16 outputs):
2 per Unit |
C500-CE241 |
FCN-360C024-J2 |
Connector
Cover |
Crimped |
FCN-363J024 |
Housing |
C500-CE242 |
FCN-363J-AU |
Contactor |
FCN-360C024-J2 |
Connector
Coverr |
Pressure
welded |
FCN-367J024-AU/F |
C500-CE243 |
|
Коннекторы MIL Connectors for 32-input, 32-output, 64-input,
64-output, 32-input/32-output, and 16-input/16-output Units |
Name |
Connection |
Remarks |
Applicable Units |
Model |
Standards |
40-pin
Connectors |
Pressure
welded |
FRC5-AO40-3TOS |
MIL Connectors:
CJ1W-ID232/233 (32 inputs): 1 per Unit
CJ1W-OD232/233/234 (32 outputs):1 per Unit
CJ1W-ID262 (64 inputs): 2 per Unit
CJ1W-OD262/263 (64 outputs): 2 per Unit
CJ1W-MD263/563 (32 inputs, 32 outputs): 2 per Unit |
XG4M-4030-T |
--- |
20-pin
Connectors |
Pressure
welded |
FRC5-AO20-3TOS |
MIL Connectors:
CJ1W-MD232/233 (16 inputs, 16 outputs): 2 per Unit |
XG4M-2030-T |
|
Applicable Connector-Terminal Block Conversion Units |
Type |
Series |
I/O |
Number
of
poles |
Terminal
type |
Size |
Mount-
ing |
Com-
mon
termi-
nals |
Bleeder
resis-
tance |
Indi-
cators |
Model |
Stand-
ards |
Slim |
XW2D |
I/O |
20 |
M3 |
Refer to
Data Sheet |
No |
No |
No |
XW2D-20G6 |
--- |
40 |
XW2D-40G6 |
XW2D-40C6 |
Inputs
only |
Built-in |
XW2D-40G6-RF |
XW2D-40G6-RM |
Through |
XW2B |
I/O |
20 |
M3.5 |
No |
No |
No |
XW2B-20G5 |
M3
(European
type) |
XW2B-20G4 |
40 |
M3.5 |
XW2B-40G5 |
M3
(European
type) |
XW2B-40G4 |
With
common
terminals |
XW2C |
I/O |
20 |
M3 |
Yes |
No |
No |
XW2C-20G6-IO16 |
Inputs
only |
20 |
M3.5 |
Yes |
XW2C-20G5-IN16 |
With
common
terminals,
3-tier |
XW2E |
Inputs
only,
3 tiers |
20 |
M3.5 |
Yes |
No |
No |
XW2E-20G5-IN16 |
Screwless
clamp
terminals |
XW2F |
Inputs
only |
20 |
Clamp |
Yes |
No |
No |
XW2F-20G7-IN16 |
Outputs
only |
20 |
Clamp |
Yes |
No |
No |
XW2F-20G7-OUT16 |
e-CON |
XW2N |
Inputs
only |
20 |
e-CON
connector |
Yes |
No |
No |
XW2N-20G8-IN16 |
|
Applicable I/O Relay Terminals |
Type |
Series |
Specifications |
Size
(hori-
zontal
mount-
ing) |
Mount-
ing |
Model |
Stand-ards |
Classification |
Po-
larity |
Number
of
points |
Rated
ON
cur-
rent at
con-
tacts |
Oper-
ation
indi-
cators |
Terminal
block for
power
supply
wiring |
Space-
saving |
G70D |
Verti-
cal
type
G70D-
V |
Out-
puts |
Relay
outputs |
NPN |
16
(SPST-
NO x 16) |
5A or 3A |
Yes |
Expandable |
Refer to
Data Sheet |
G70D-VSOC16 |
U, C,
CE |
MOSFET
relay
outputs |
0.3A |
G70D-VFOM16 |
Flat
type
G70D |
Relay
outputs |
NPN |
8
(SPST-
NO x 8) |
5A |
Yes |
--- |
G70D-SOC08 |
--- |
16
(SPST-
NO x 16) |
3A |
G70D-SOC16 |
--- |
PNP |
16
(SPST-
NO x 16) |
3A |
G70D-SOC16-1 |
MOSFET
relay
outputs |
NPN |
16
(SPST-
NO x 16) |
0.3A |
G70D-FOM16 |
--- |
PNP |
G70D-FOM16-1 |
High-
capacity,
space-
saving |
G70R |
Out-
puts |
Relay
outputs |
NPN |
8
(SPST-
NO x 8) |
10A |
Yes |
--- |
G70R-SOC08 |
--- |
Standard |
G7TC |
In-
puts |
AC
inputs |
NPN |
16
(SPST-
NO x 16) |
1A |
Yes |
--- |
G7TC-IA16 |
U, C |
DC
inputs |
G7TC-ID16 |
Out-
puts |
Relay
outputs |
NPN |
8
(SPST-
NO x 8) |
5A |
G7TC-OC08 |
16
(SPST-
NO x 16) |
G7TC-OC16 |
PNP |
16
(SPST-
NO x 16) |
G7TC-OC16-1 |
--- |
High-
capacity
socket |
G70A
(Socket only) |
Out-
puts |
Relay
outputs |
NPN |
16
(SPDT
× 16
possible
with
G2R
Relays) |
10 A
(Termi-
nal
block
allowable
current) |
No |
--- |
G70A-ZOC16-3
(Socket only) +
Relay/SSR/
MOSFET
Relay/Timer |
U, C,
CE |
PNP |
G70A-ZOC16-4
(Socket only) +
Relay/SSR/
MOSFET
Relay/Timer |
|
Модули вывода |
Unit
type |
Product
name |
Specifications |
No. of
words
allocated |
Current
consump-
tion (A) |
Model |
Stand-
ards |
Output
type |
I/O
points |
Maximum
switching
capacity |
Commons |
External
connection |
5 V |
24 V |
CJ1
Basic
I/O
Units |
Relay
Contact
Output
Units
|
--- |
8
outputs |
250 VAC/
24 VDC, 2 A |
Independent
contacts |
Removable
terminal
block |
1 words |
0.09 |
0.048
max. |
CJ1W-OC201 |
UC1, N,
L, CE |
--- |
16
outputs |
250 VAC/
24 VDC, 2 A |
16 points,
1 common |
Removable
terminal
block |
1 words |
0.11 |
0.096
max. |
CJ1W-OC211 |
Triac
Output
Unit
|
--- |
8
outputs |
250 VAC,
0.6 A |
8 points,
1 common |
Removable
terminal
block |
1 words |
0.22 |
--- |
CJ1W-OA201 |
Transistor
Output
Units
|
Sinking |
8
outputs |
12 to 24
VDC,
2 A |
4 points,
1 common |
Removable
terminal
block |
1 words |
0.09 |
--- |
CJ1W-OD201 |
Sinking |
8
outputs |
12 to 24
VDC,
0.5 A |
8 points,
1 common |
Removable
terminal
block |
1 words |
0.1 |
--- |
CJ1W-OD203 |
Sinking |
16
outputs |
12 to 24
VDC,
0.5 A |
16 points,
1 common |
Removable
terminal
block |
1 words |
0.1 |
--- |
CJ1W-OD211 |
Sinking |
16
outputs
(High
speed) |
24 VDC, 0.5
A |
16 points,
1 common |
Removable
terminal
block |
1 words |
0.15 |
--- |
CJ1W-OD213 |
N, L,
CE |
Sinking |
32
outputs |
12 to 24
VDC,
0.5 A |
16 points,
1 common |
Fujitsu
connector |
2 words |
0.14 |
--- |
CJ1W-OD231 |
UC1, N,
L, CE |
Sinking |
32
outputs |
12 to 24
VDC,
0.5 A |
16 points,
1 common |
MIL
connector |
2 words |
0.14 |
--- |
CJ1W-OD233 |
Sinking |
32
outputs
(High
speed) |
24 VDC, 0.5
A |
16 points,
1 common |
MIL
connector |
2 words |
0.22 |
--- |
CJ1W-OD234 |
N, L,
CE |
Sinking |
64
outputs |
12 to 24
VDC,
0.3 A |
16 points,
1 common |
Fujitsu
connector |
4 words |
0.17 |
--- |
CJ1W-OD261 |
UC1, N,
L, CE |
Sinking |
64
outputs |
12 to 24
VDC,
0.3 A |
16 points,
1 common |
MIL
connector |
4 words |
0.17 |
--- |
CJ1W-OD263 |
Sourcing |
8
outputs |
24 VDC, 2 A
Short-circuit
protection |
4 points,
1 common |
Removable
terminal
block |
1 words |
0.11 |
--- |
CJ1W-OD202 |
Sourcing |
8
outputs |
24 VDC, 0.5 A
Short-circuit
protection |
8 points,
1 common |
Removable
terminal
block |
1 words |
0.1 |
--- |
CJ1W-OD204 |
Sourcing |
16
outputs |
24 VDC, 0.5 A
Short-circuit
protection |
16 points,
1 common |
Removable
terminal
block |
1 words |
0.1 |
--- |
CJ1W-OD212 |
Sourcing |
32
outputs |
24 VDC, 0.5 A
Short-circuit
protection |
16 points,
1 common |
MIL
connector |
2 words |
0.15 |
--- |
CJ1W-OD232 |
Sourcing |
64
outputs |
12 to 24
VDC,
0.3 A |
16 points,
1 common |
MIL
connector |
4 words |
0.17 |
--- |
CJ1W-OD262 |
|
Модули ввода/вывода |
Unit
type |
Product
name |
Specifications |
Current
consump-
tion (A) |
Model |
Stand-
ards |
Output
type |
I/O
points |
Input
voltage,
Input current |
Commons |
External
connec-
tion |
No. of
words
allocated |
5 V |
24 V |
Maximum
switching
capacity |
CJ1
Basic
I/O
Units |
DC
Input/
Transistor
Output
Units
|
Sinking |
16
inputs |
24 VDC, 7
mA |
16 points,
1 common |
Fujitsu
connector |
2 words |
0.13 |
--- |
CJ1W-MD231 |
UC1, N,
CE |
16
outputs |
250 VAC/
24 VDC, 0.5 A |
16 points,
1 common |
Sinking |
16
inputs |
24 VDC, 7
mA |
16 points,
1 common |
MIL
connector |
2 words |
0.13 |
--- |
CJ1W-MD233 |
UC1, N,
CE |
16
outputs |
12 to 24
VDC,
0.5 A |
16 points,
1 common |
Sinking |
32
inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
Fujitsu
connector |
4 words |
0.14 |
--- |
CJ1W-MD261 |
32
outputs |
12 to 24
VDC,
0.3 A |
16 points,
1 common |
Sinking |
32
inputs |
24 VDC, 4.1
mA |
16 points,
1 common |
MIL
connector |
4 words |
0.14 |
--- |
CJ1W-MD263 |
32
outputs |
12 to 24
VDC,
0.3 A |
16 points,
1 common |
Sourcing |
16
inputs |
24 VDC, 7
mA |
16 points,
1 common |
MIL
connector |
2 words |
0.13 |
--- |
CJ1W-MD232 |
UC1, N,
L, CE |
16
outputs |
24 VDC, 0.5 A
Short-circuit
protection |
16 points,
1 common |
TTL I/O
Units
|
--- |
32
inputs |
5 VDC, 35
mA |
16 points,
1 common |
MIL
connector |
4 words |
0.19 |
--- |
CJ1W-MD563 |
UC1, N,
CE |
32
outputs |
5 VDC, 35
mA |
16 points,
1 common |
|
Модули прерываний входов |
Product
name |
Specifications |
Current
consumption (A) |
Model |
I/O points |
Input
voltage
current |
Commons |
Input pulse
width
conditions |
Max. Units
mountable
per Unit |
External
connection |
5 V |
24 V |
Interrupt
Input Unit
|
16 inputs |
24 VDC,
7 mA |
16 points,
1 common |
ON time:
0.05 ms max.
OFF time:
0.5 ms max. |
2 |
Removable
terminal block |
0.08 |
--- |
CJ1W-INT01 |
|
Модули ввода с быстрым откликом |
Product
name |
Specifications |
Current
consumption (A) |
Model |
I/O
points |
Input
voltage
current |
Commons |
Input
pulse width
conditions |
External
connection |
5 V |
24 V |
Quick-
response
Input Unit
|
16 inputs |
24 VDC, 7
mA |
16 points,
1 common |
ON time: 0.05 ms max.
OFF time: 0.5 ms max. |
Removable
terminal block |
0.08 |
--- |
CJ1W-IDP01 |
|
Интерфейсные модули |
Unit
type |
Name |
Specifications |
No. of
words
allocated |
Current
consumption (A) |
Model |
Standards |
I/O
points |
External
connection |
5 V |
24 V |
CJ1
Basic
I/O
Units |
B7A
Interface
Units
|
64 inputs |
Removable
terminal block |
4 words |
0.07 |
--- |
CJ1W-B7A14 |
UC1, CE |
64 outputs |
0.07 |
--- |
CJ1W-B7A04 |
32 inputs/
outputs |
0.07 |
--- |
CJ1W-B7A22 |
|
СПЕЦИАЛЬНЫЕ МОДУЛИ |
Модуль изолированного типа для подключения термопар |
Unit
classification |
Product
name |
Input
points |
Signal
range
selection |
Signal
range |
Conversion
speed
(resolution) |
Accuracy
(at ambient
temperature
of 25 ° C) |
Current
consumption
(A) |
Model |
5 V |
24 V |
CJ1
Special I/O
Units |
Process
Input Units
(Isolated-type
Thermocouple
Input Units)
|
2
inputs |
Set
separately
for each
input |
Thermocouple:
B, E, J, K, L,
N, R, S, T, U,
WRe5-26, PLII
DC voltage:
± 100 mV |
Conversion
speed:
10 ms/
2 inputs,
Resolution:
1/64,000 |
Standard
accuracy:
± 0.05% of
F.S. (See
note 1.) |
0.18 |
0.06
(See
note
2.) |
CJ1W-PTS15 |
4
inputs |
Common
inputs |
Thermocouple:
R, S, K, J, T,
L, B |
Conversion
speed:
250 ms/
4 inputs |
Accuracy:
( ± 0.3% of
PV or
± 1 ° C,
whichever
is larger) ± 1
digit max.
(See
note 3.) |
0.25 |
--- |
CJ1W-PTS51 |
|
Модуль изолированного типа для подключения термометров
сопротивления |
Unit
classification |
Product
name |
Input
points |
Signal
range
selection |
Signal
range |
Conversion
speed
(resolution) |
Accuracy
(at ambient
temperature
of 25 ° C) |
Current
consumption
(A) |
Model |
5 V |
24 V |
CJ1
Special I/O
Units |
Process
Analog Input
Units
(Isolated-type
Resistance
Thermometer
Input Units)
|
2
inputs |
Set
separately
for each
input |
Resistance
thermometer:
Pt100,
JPt100,
Pt50,
Ni508.4 |
Conversion
speed:
10 ms/
2 inputs,
Resolution:
1/64,000 |
Accuracy:
± 0.05% of
F.S. or
± 0.1 ° C,
whichever is
larger. |
0.18 |
0.07
(See
note.) |
CJ1W-PTS16 |
4
inputs |
Common
inputs |
Resistance
thermometer:
Pt100,
JPt100 |
Conversion
speed:
250 ms/
4 inputs |
Accuracy:
± 0.3% of PV
or ± 0.8 ° C,
whichever is
larger, ± 1
digit max. |
0.25 |
--- |
CJ1W-PTS52 |
|
Модуль аналогового ввода |
Product
name |
I/O
points |
Signal
range
selection |
Signal
range |
Resolution |
Conversion
Speed |
Accuracy
(at ambient
temperature
of 25 ° C) |
Current
consumption
(A) |
Model |
5 V |
24 V |
Analog
Input
Units
|
8
inputs |
Set
separately
for each
input |
1 to 5 V,
0 to 5 V,
0 to 10 V,
± 10 V,
4 to 20 mA |
1/8,000
(Settable
to 1/4,000)
(See
note 1.) |
250
μs/
point max.
(Settable
to 1 ms/
point) (See
note 1.) |
Voltage:
± 0.2% of F.S.
Current:
± 0.4% of F.S.
(See note 2.) |
0.42 |
--- |
CJ1W-AD081-V1 |
4
inputs |
Set
separately
for each
input |
CS1W-AD041-V1 |
|
Модуль аналогового вывода |
Product
name |
I/O
points |
Signal
range |
Resolution |
Conversion
Speed |
Accuracy
(at ambient
temperature
of 25 ° C) |
External
power
supply |
Current
consumption
(A) |
Model |
Standards |
5 V |
24 V |
Analog
Output
Units
|
8
outputs |
1 to 5 V,
0 to 5 V,
0 to 10 V,
- 10 to 10 V |
1/4,000
(Settable
to
1/8,000)
(See
note.) |
1 ms/
point
(Settable
to 250
μs/
point max.) |
± 0.3% of
F.S. |
24 VDC
+10%,
-15%,
140 mA
max. |
0.14 |
0.14
(See
note.) |
CJ1W-DA08V |
UC1, N,
L, CE |
8
outputs |
4 to 20 mA |
24 VDC
+10%,
-15%,
170 mA
max. |
0.17
(See
note.) |
CS1W-DA08C |
UC1, N,
CE |
4
outputs |
1 to 5 V,
0 to 5 V,
0 to 10 V,
- 10 to 10 V,
4 to 20 mA |
1/4,000 |
1 ms/
point max. |
Voltage:
± 0.3% of
F.S.
Current:
± 0.5% of
F.S. |
24 VDC
+10%,
-15%,
200 mA
max. |
0.12 |
0.2
(See
note.) |
CJ1W-DA041 |
UC1, N,
L, CE |
2
outputs |
24 VDC
+10%,
-15%,
140 mA
max. |
0.14
(See
note.) |
CS1W-DA021 |
|
Модули аналогового ввода/вывода |
Product
name |
I/O
points |
Signal
range |
Resolution |
Conversion
Speed |
Accuracy
(at ambient
temperature
of 25 ° C) |
Current
consumption
(A) |
Model |
Standards |
5 V |
24 V |
Analog
I/O
Units
|
4
inputs |
1 to 5 V,
0 to 5 V,
0 to 10 V,
- 10 to 10 V,
4 to 20 mA |
1/4,000
(Settable
to
1/8,000) |
1 ms/
point
(Settable
to 500
μs/
point max.) |
Voltage:
± 0.2% of F.S.
Current:
± 0.2% of F.S. |
0.58 |
--- |
CJ1W-MAD42 |
UC1, N,
L, CE |
2
outputs |
Voltage:
± 0.3% of F.S.
Current:
± 0.3% of F.S. |
|
Модуль DC входов изолированного типа |
Product
name |
Input
points |
Signal
range selection |
Conversion
speed
(resolution) |
Accuracy
(at ambient
temperature
of 25 ° C) |
Current
consumption
(A) |
Model |
5 V |
24 V |
Isolated-
type DC
Input Units
|
2 inputs |
DC voltage:
0 to 1.25 V,
- 1.25 to 1.25 V,
0 to 5 V, 1 to 5 V, - 5 to 5 V,
0 to 10 V, - 10 to 10 V,
± 10 V selectable range
DC current:
0 to 20 mA, 4 to 20 mA |
Conversion
speed:
10 ms/
2 inputs
Resolution:
1/64,000 |
Accuracy:
± 0.05% of F.S. |
0.18 |
0.09
(See
note.) |
CJ1W-PDC15 |
|
Температурный модуль |
Product
name |
Specifications |
Current
consumption (A) |
Model |
No. of
loops |
Temperature
sensor inputs |
Control
outputs |
5 V |
24 V |
Temperature
Control
Units
|
4 loops |
Thermocouple
input
(R, S, K, J, T, B, L) |
Open collector NPN
outputs (pulses) |
0.25 |
- |
CJ1W-TC001 |
4 loops |
Open collector PNP
outputs (pulses) |
0.25 |
- |
CJ1W-TC002 |
2 loops, heater
burnout detection
function |
Open collector NPN
outputs (pulses) |
0.25 |
- |
CJ1W-TC003 |
2 loops, heater
burnout detection
function |
Open collector PNP
outputs (pulses) |
0.25 |
- |
CJ1W-TC004 |
4 loops |
Platinum
resistance
thermometer input
(JPt100, Pt100) |
Open collector NPN
outputs (pulses) |
0.25 |
- |
CJ1W-TC101 |
4 loops |
Open collector PNP
outputs (pulses) |
0.25 |
- |
CJ1W-TC102 |
2 loops, heater
burnout detection
function |
Open collector NPN
outputs (pulses) |
0.25 |
- |
CJ1W-TC103 |
2 loops, heater
burnout detection
function |
Open collector PNP
outputs (pulses) |
0.25 |
- |
CJ1W-TC104 |
|
Высокоскоростные модули позиционирования |
Unit
type |
Name |
Specifications |
No. of
unit
numbers
allocated |
Current
consumption (A) |
Model |
Standards |
Control method/
Control output
interface |
Number
of
control
axes |
5 V
system |
24 V
system |
CJ1
Special
I/O
Units |
Position
control
unit
|
Open-loop control
by pulse train
output/Open-
collector output |
1 axis |
1 |
0.25 |
--- |
CJ1W-NC113 |
UC1, CE |
2 axes |
0.25 |
--- |
CJ1W-NC213 |
4 axes * |
2 |
0.36 |
--- |
CJ1W-NC413 |
Open-loop control
by pulse train
output/Line-driver
output |
1 axis |
1 |
0.25 |
--- |
CJ1W-NC133 |
2 axes |
0.25 |
--- |
CJ1W-NC233 |
4 axes * |
2 |
0.36 |
--- |
CJ1W-NC433 |
Space
Unit |
The ambient operation temperature range can be increased to
0 to 55 °C if the CJ1W-SP001 CJ-series Space Unit is used. |
CJ1W-SP001 |
UC1, CE |
|
Программное обеспечение |
Name |
Specifications |
Model |
Standards |
CX-One FA
Integrated
Tool
Package
Ver. 3 |
The CX-One is a package that integrates the Support
Software for OMRON PLCs and components. CX-One
runs on the following OS: Windows 2000 (Service
Pack 3a or higher), XP or Vista
CX-One Ver.3.
[] includes
CX-Position Ver.2. [] . |
1 license
*1
CD |
CXONE-AL01C-V3 |
--- |
1 license
*1
DVD *2 |
CXONE-AL01D-V3 |
|
Servo Relay Unit/Cables |
Name |
Applicable units |
Applicable drives |
Number
of
control
axes |
Cable
length |
Model |
Standards |
Servo
Relay
Unit |
For CJ1W-NC113/133
(No communication supported) |
--- |
1 axis |
--- |
XW2B-20J6-1B |
--- |
For CJ1W-NC213/233/413/433
(No communication supported) |
--- |
2 axes |
--- |
XW2B-40J6-2B |
|
For CJ1W-NC113/133/213/
233/413/433
(Communication supported) |
--- |
2 axes |
--- |
XW2B-40J6-4A |
|
Position
Control
Unit
Cables
for
Servo
Relay
Unit |
Open-
collector
output |
For
CJ1W-NC113 |
OMNUC G/W Series,
SMARTSTEP 2 |
1 axis |
0.5m |
XW2Z-050J-A14 |
--- |
1m |
XW2Z-100J-A14 |
SMARTSTEP
Junior/A Series |
0.5m |
XW2Z-050J-A16 |
1m |
XW2Z-100J-A16 |
For
CJ1W-NC213/413 |
OMNUC G/W Series,
SMARTSTEP 2 |
2 axes |
0.5m |
XW2Z-050J-A15 |
1m |
XW2Z-100J-A15 |
SMARTSTEP
Junior/A Series |
0.5m |
XW2Z-050J-A17 |
1m |
XW2Z-100J-A17 |
Line-
driver
output |
For
CJ1W-NC313 |
OMNUC G/W Series,
SMARTSTEP 2 |
1 axis |
0.5m |
XW2Z-050J-A18 |
1m |
XW2Z-100J-A18 |
SMARTSTEP
Junior/A Series |
0.5m |
XW2Z-050J-A20 |
1m |
XW2Z-100J-A20 |
For
CJ1W-NC233/413 |
OMNUC G/W Series,
SMARTSTEP 2 |
2 axes |
0.5m |
XW2Z-050J-A19 |
1m |
XW2Z-100J-A19 |
SMARTSTEP
Junior/A Series |
0.5m |
XW2Z-050J-A21 |
1m |
XW2Z-100J-A21 |
|
Communications Cables for Serial Communications Boards/Units |
Name |
Specifications |
Applicable Serial
Communications
Units/Boards |
Applicable
Servo Drive |
Cable
Length |
Model |
Communications
Cables for Serial
Communications
Boards/Units |
RS-422A Communications
cable (Servo Relay Unit
XW2B-40J6-4A required * ) |
CJ1W-SCU41-V1
CJ1W-SCU31-V1 |
OMNUC W Series,
SMARTSTEP A Series |
1m |
XW2Z-100J-C1 |
2m |
XW2Z-200J-C1 |
|
Коннекторы |
Name |
Specifications |
Model |
External
I/O Connectors |
|
40 pin, soldered, right angle w/cover (included with the
Unit) |
C500-CE404 |
40 pin, crimped right angle w/cover |
C500-CE405 |
|
40 pin, Pressure welded, w/o cover |
C500-CE403 |
|
40 pin,
soldered, w/cover |
C500-CE401 |
40 pin,
crimped w/cover |
C500-CE402 |
|
Модули изолированного типа с универсальным входами |
Product
name |
Signal
range |
Conversion
speed
(resolution) |
Accuracy (at ambient
temperature of 25 ° C) |
Current
consumption
(A) |
Model |
Standards |
5 V |
24 V |
Process
Input
Units
(Isolated-
type
Units
with
Universal
Inputs)
|
Fully universal inputs:
Pt100, JPt100, Pt1000, K, J,
T, L, R, S, B, 4 to 20 mA,
0 to 20 mA, 1 to 5 V,
0 to 5 V, 0 to 10 V |
Conversion
speed:
250 ms/
4 inputs |
Accuracy: Platinum resistance
thermometer input: (± 0.3% of
PV or ± 0.8 °C, whichever
is larger) ± 1 digit max.
Thermocouple input: (± 0.3% of
PV or ± 1.5 °C, whichever
is larger) ± 1 digit max.
(See note 1.)
Voltage or current input:
± 0.3% of F.S. ± 1 digit max. |
0.32 |
--- |
CJ1W-AD04U |
UC1, CE, L |
Universal inputs:
Pt100 (3-wire), JPt100
(3-wire), Pt1000 (3-wire),
Pt100 (4-wire), K, J, T, E,
L, U, N, R, S, B, WRe5-26,
PL II, 4 to 20 mA,
0 to 20 mA, 1 to 5 V,
0 to 1.25 V, 0 to 5 V,
0 to 10 V, ± 100 mV
selectable range
- 1.25 to 1.25 V,
- 5 to 5 V, - 10 to 10 V,
± 10 V
selectable range,
potentiometer |
Resolution
(conversion
speed):
1/256,000
(conversion
cycle: 60 ms/
4 inputs)
1/64,000
(conversion
cycle: 10 ms/
4 inputs)
1/16,000
(conversion
cycle: 5 ms/
4 inputs) |
Standard accuracy:
±0.05% of F.S. |
0.3 |
--- |
CJ1W-PH41U
(See note 2.) |
UC1, CE |
|
Модуль EtherNet/IP |
Name |
Specifications |
Current
consumption (A) |
Model |
Communications
cable |
Communications
functions |
Units
per
CPU Unit |
5 V
system |
24 V
system |
EtherNet/IP
Unit
|
Shielded twisted-pair
(STP) cable
Categories:
100
Ω
at 5, 5e |
Tag Data Link Functions,
Message Communications
Functions |
8 max.
(See note.) |
0.41 |
- |
CJ1W-EIP21 |
|
Industrial Switching Hubs |
Name |
Appearance |
Specifications |
Model |
Standards |
Functions |
Number
of ports |
Error
detection
output |
Industrial
Switching
Hubs |
|
Packet priority control (QoS):
EtherNet/IP control data priority
Failure detection: Broadcast storm,
LSI error detection, 10/100Base-TX,
Auto-Negotiation |
3 |
No |
W4S1-03B |
CE |
|
5 |
No |
W4S1-05B |
5 |
Yes |
W4S1-05C |
|
Модуль Controller Link (новая модель) |
Product
name |
Specifications |
Current
consumption (A) |
Model |
Communications
cable |
Communications
type |
Duplex
support |
Max. Units
mountable
per CPU
Unit |
5 V DC |
24 V DC |
Controller
Link
Unit
|
Wired shielded
twisted-pair
cable(See note.) |
Data links and
message service |
No |
8 |
0.35 |
--- |
CJ1W-CLK23 |
|
Модуль Controller Link (старая модель) |
Product
name |
Specifications |
Current
consumption (A) |
Model |
Communications
cable |
Communications
type |
Duplex
support |
Max. Units
mountable
per CPU
Unit |
5 V DC |
24 V DC |
Controller
Link Unit |
Wired shielded
twisted-pair cable
(See note.) |
Data links and
message service |
No |
8 |
0.35 |
--- |
CJ1W-CLK21-V1 |
|
Модуль DeviceNet |
Product |
Appearance |
Specifications |
Model |
Standards |
|
Number
of
licenses |
Media |
DeviceNet
Unit |
|
For CJ Series
Functions as either a master or a slave.
2,048 I/O points |
CJ1W-DRM21 |
UC1, N,
L, CE |
|
CX-One FA
Integrated
Tool
Package
Ver. 2.[] |
The CX-One is a package that
integrates the Support Software
for OMRON PLCs and
components. CX-One runs on
the following OS.
Windows 98SE, Me, NT4.0
(Service Pack 6a), 2000
(Service Pack 3a or higher),
XP or Vista CX-One Ver.2.[]
includes CX-Integrator Ver.2.[]. |
1 license
*1 |
CD |
CXONE-AL01C-EV2 |
--- |
DVD *2 |
CXONE-AL01D-EV2 |
|
Модуль CompoBus/S |
Unit
type |
Name |
Specifications |
No. of
unit
numbers
allocated |
Current
con-
sumption (A) |
Model |
Stand-
ards |
Communications
functions |
No. of I/O
points |
Max. Units
mountable
per CPU
Unit |
5 V |
24 V |
CJ1
Special
I/O
Units |
CompoBus/S
Master Unit
|
Remote I/O
communications |
256 max.
(128 inputs and
128 outputs) |
40 |
1 or 2
(variable) |
0.15 |
--- |
CJ1W-SRM21 |
UC1, N,
L, CE, |
128 max.
(64 inputs and
64 outputs) |
|
|
ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON CJ1 |
Технические данные OMRON
CJ1 (6 045 kb) |
НАЗАД
>>> |
|
