ПРОГРАММИРУЕМЫЙ ЛОГИЧЕСКИЙ КОНТРОЛЛЕР CP1L OMRON

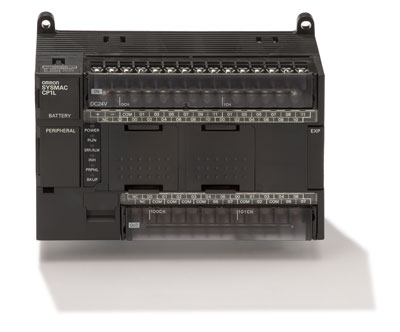

Компактный ПЛК ОМРОН CP1L

Созданный специально для применения в небольших установках, ПЛК CP1L сочетает в себе компактность микро-ПЛК и функциональность модульного ПЛК. Модули CP1L выпускаются на 14, 20, 30 или 40 точек ввода/вывода и могут быть расширены до 160 точек ввода/вывода за счет дополнительных модулей CP1W или CPM1A.


ОСОБЕННОСТИ:
4 высокоскоростных входа энкодера и 2 высокоскоростных выхода
Совместимость с CP1H, CJ1 и CS1 по набору команд
Опционально RS232C и RS-422A/485
USB порт для простой связи, программирования и конфигурирования

Контроллеры OMRON CP1L

CPU Unit

Specifications

Model

Standards

CPU type

Power
supply

Output method

Inputs

Outputs

CP1L-M CPU
Units with
60 Points

Memory capacity:
10K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

36

24

CP1L-M60DR-A

UC1,
N, CE

Transistor output
(sinking)

CP1L-M60DT-A

---

DC
power
supply

Relay output

CP1L-M60DR-D

UC1,
N, CE

Transistor output
(sinking)

CP1L-M60DT-D

Transistor output
(sourcing)

CP1L-M60DT1-D

CP1L-M CPU
Units with
40 Points

Memory capacity:
10K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

24

16

CP1L-M40DR-A

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-M40DT-A

---

DC
power
supply

Relay output

CP1L-M40DR-D

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-M40DT-D

Transistor output
(sourcing)

CP1L-M40DT1-D

CP1L-M CPU
Units with
30 Points

Memory capacity:
10K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

18

12

CP1L-M30DR-A

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-M30DT-A

---

DC
power
supply

Relay output

CP1L-M30DR-D

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-M30DT-D

Transistor output
(sourcing)

CP1L-M30DT1-D

CP1L-L CPU
Units with
20 Points

Memory capacity:
5K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

12

8

CP1L-L20DR-A

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-L20DT-A

---

DC
power
supply

Relay output

CP1L-L20DR-D

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-L20DT-D

Transistor output
(sourcing)

CP1L-L20DT1-D

CP1L-L CPU
Units with
14 Points

Memory capacity:
5K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

8

6

CP1L-L14DR-A

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-L14DT-A

---

DC
power
supply

Relay output

CP1L-L14DR-D

UC1, N,
L, CE

Transistor output
(sinking)

CP1L-L14DT-D

Transistor output
(sourcing)

CP1L-L14DT1-D

CP1L-L CPU
Units with
10 Point

Memory capacity:
5K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

6

4

CP1L-L10DR-A

UC1,
N, CE

Transistor output
(sinking)

CP1L-L10DT-A

---

DC
power
supply

Relay output

CP1L-L10DR-D

UC1,
N, CE

Transistor output
(sinking)

CP1L-L10DT-D

Transistor output
(sourcing)

CP1L-L10DT1-D


Опции для модулей ЦПУ

Name

Specifications

Model

Standards

RS-232C
Option
Board

Can be mounted in either CPU Unit Option Board slot 1 or 2.
Note: Cannot be used for the CP1L-L10.

CP1W-CIF01

UC1, N,
L, CE

RS-422A/485
Option
Board

Can be mounted in either CPU Unit Option Board slot 1 or 2.
Note: Cannot be used for the CP1L-L10.

CP1W-CIF11

LCD Option
Board

Can be mounted only in the CPU Unit Option Board slot 1.
Note: Cannot be used for the CP1L-L10.

CP1W-DAM01

UC1,

Memory
Cassette

Can be used for backing up programs or auto-booting.

CP1W-ME05M

UC1, N,
L, CE


Программные продукты

Name

Specifications

Model

Standards



Number
of
licenses

Media

CX-One FA
IntegratedTool
Package Ver. 2.[]
(See notes 1,
2 and 3.)

CX-One is a package that integrates
the Support Software for OMRON.
PLCs and components.
CX-One runs on the following OS.
OS: Windows 98SE, Me, NT 4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista
CX-One Ver. 2.[] includes
CX-Programmer Ver. 7.[].

1
license

CD

CXONE-AL01C-EV2

---

DVD

CXONE-AL01D-EV2

3
licenses

CD

CXONE-AL03C-EV2

DVD

CXONE-AL03D-EV2

10
licenses

CD

CXONE-AL10C-EV2

DVD

CXONE-AL10D-EV2

30
licenses

CD

CXONE-AL30C-EV2

DVD

CXONE-AL30D-EV2

50
licenses

CD

CXONE-AL50C-EV2

DVD

CXONE-AL50D-EV2

CX-Programmer can still be ordered individually in the following model number.



CX-Programmer
Ver. 7.[]
(See note 4.)

PLC Support Software
OS: Windows 98SE, Me, NT 4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista

1
license

CD

WS02-CXPC1-E-V7[]

---

3
licenses

CD

WS02-CXPC1-E03-V7[]

10
licenses

CD

WS02-CXPC1-E10-V7[]

FA Integrated
Tool Package
CX-One Lite
Version 2.[]

CX-One runs on the following OS.
Windows 98SE, Me, NT 4.0(Service
Pack 6a), 2000(Service Pack 3 or
higher), XP, or Vista
CX-One Lite is a subset (see note 5.)
of the complete
CX-One package that provides only
the Support Software required for
micro PLC applications. It can be used
only with micro PLCs. (See note 6.)

1
license

CD

CXONE-LT01C-EV2

---

Micro PLC Edition CX-Programmer can still be ordered individually in the following model numbers.



Micro PLC Edition
CX-Programmer
Ver.7.[]
(See note 7.)

PLC Support Software
OS: Windows 98SE, Me, NT4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista
Applicable models: CP1L, CP1H,
CPM[][], SRM1

1
license

CD

WS02-CXPC1-EJ-V7[]

---

Programming
Device
Connecting
Cable for
CP1W-CIF01
RS-232C
Option Board
(See note 8.)

Connects DOS computers,
D-Sub 9-pin (Length: 2.0 m)

For anti-static
connectors

XW2Z-200S-CV

---

Connects DOS computers,
D-Sub 9-pin (Length: 5.0 m)

XW2Z-500S-CV

Connects DOS computers, D-Sub 9-pin (Length: 2.0 m)

XW2Z-200S-V

Connects DOS computers, D-Sub 9-pin (Length: 5.0 m)

XW2Z-500S-V



USB-Serial
Conversion
Cable
(See note 8.)

USB-RS-232C Conversion Cable (Length: 0.5 m) and
PC driver (on a CD-ROM disc) are included.
Complies with USB Specification 1.1
On personal computer side: USB (A plug connector, male)
On PLC side: RS-232C (D-sub 9-pin, male)
Driver: Supported by Windows 98, Me, 2000, and XP

CS1W-CIF31

N


Модули расширения

Name

Output method

Inputs

Outputs

Model

Standards

Expansion I/O
Units

Relay

24

16

CP1W-40EDR

N, L, CE

Transistor (sinking)

CP1W-40EDT

Transistor (sourcing)

CP1W-40EDT1

Relay

---

32

CP1W-32ER

---

Transistor (sinking)

CP1W-32ET

Transistor (sourcing)

CP1W-32ET1

Relay

12

8

CP1W-20EDR1

U, C, L, CE

Transistor (sinking)

CP1W-20EDT

U, C, N,
L, CE

Transistor (sourcing)

CP1W-20EDT1

Relay

---

16

CP1W-16ER

CE

Transistor (sinking)

CP1W-16ET

---

Transistor (sourcing)

CP1W-16ET1

---

8

---

CP1W-8ED

U, C, N,
L, CE

Relay

---

8

CP1W-8ER

Transistor (sinking)

8

CP1W-8ET

Transistor (sourcing)

CP1W-8ET1

Analog Input
Unit

Analog
(resolution: 1/6000)

4

---

CP1W-AD041

UC1, N,
L, CE

Analog Output
Unit

Analog
(resolution: 1/6000)

---

4

CP1W-DA041

Analog I/O
Unit

Analog
(resolution: 1/6000)

2

1

CP1W-MAD11

U, C, N,
L, CE

CompoBus/S
I/O Link Unit

---

8
(I/O link
input bits)

8
(I/O link
input bits)

CP1W-SRT21

U, C, N,
L, CE

Temperature
Sensor Unit

2 thermocouple inputs

CP1W-TS001

4 thermocouple inputs

CP1W-TS002

2 platinum resistance thermometer inputs

CP1W-TS101

4 platinum resistance thermometer inputs

CP1W-TS102


Кабель связи

Name

Specifications

Model

Standards

I/O Connecting Cable

80 cm (for CP1W/CPM1A Expansion Units)

CP1W-CN811

UC1, N, L, CE


ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON CP1L
Руководство пользователя OMRON CP1L (11 405 kb)
Техническая документация OMRON CP1L (English) (6 180 kb)
