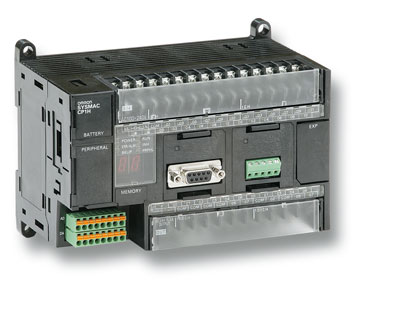

ПРОГРАММИРУЕМЫЙ ЛОГИЧЕСКИЙ КОНТРОЛЛЕР CP1H OMRON

Моноблочный ПЛК - все функции в одном блоке

Созданный специально для применения в небольших установках, ПЛК CP1H сочетает в себе компактность микро-ПЛК и функциональность модульного ПЛК. Благодаря наличию четырех встроенных высокоскоростных счетчиков и четырех импульсных выходов он отлично подходит для многоосного позиционного управления. ПЛК ОМРОН CP1H-XA содержит "на борту" 4 аналоговых входа и 2 аналоговых выхода. На его базе можно реализовать простой контур регулирования, используя предусмотренную в ПЛК функцию расширенного ПИД-регулирования с автоматической настройкой. Модуль CP1H можно дополнить модулем входов/выходов CPM1, а также одним или двумя специальными модулями ввода/вывода CJ1. Таким образом, CP1H способен участвовать в обмене данными по стандартным сетям и поддерживает все модули связи серии CJ1.


ОСОБЕННОСТИ:
Частота входных/выходных сигналов до 100 кГц
Совместимость с CJ1M по набору команд и скорости выполнения
4 аналоговых входа и 2 аналоговых выхода у модели XA
USB порт для простой связи, программирования и конфигурирования
Поддерживает Profibus, DeviceNet, CAN и Ethernet

Контроллеры OMRON CP1H

CPU Unit

Specifications

Model

Standards

CPU type

Power
supply

Output method

Inputs

Outputs

CP1H-X
CPU Units

Memory capacity:
20K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 4 axes
(Models with
transistor outputs
only)

AC
power
supply

Relay output

24

16

CP1H-X40DR-A

UC1, N,
L, CE

DC
power
supply

Transistor output
(sinking)

CP1H-X40DT-D

Transistor
output
(sourcing)

CP1H-X40DT1-D

CP1H-XA
CPU Units

Memory capacity:
20K steps
High-speed
counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 4 axes
(Models with
transistor outputs
only)
Analog inputs: 4
Analog outputs: 2

AC
power
supply

Relay output

24

16

CP1H-XA40DR-A

DC
power
supply

Transistor output
(sinking)

CP1H-XA40DT-D

Transistor output
(sourcing)

CP1H-XA40DT1-D

CP1H-Y
CPU Units

Memory capacity:
20K steps
High-speed
counters:
1 MHz, 2 axes
100 kHz, 2 axes
Pulse outputs:
1 MHz, 2 axes
100 kHz, 2 axes

DC
power
supply

Transistor output
(sinking)

12
+
line-driver
input,
2 axes

8
+
line-driver
output,
2 axes

CP1H-Y20DT-D


Опции для модулей ЦПУ

Name

Specifications

Model

Standards

RS-232C
Option
Board

Can be mounted in either CPU Unit Option Board slot 1 or 2.
Note: Cannot be used for the CP1L-L10.

CP1W-CIF01

UC1, N,
L, CE

RS-422A/485
Option
Board

Can be mounted in either CPU Unit Option Board slot 1 or 2.
Note: Cannot be used for the CP1L-L10.

CP1W-CIF11

LCD
Option
Board

Can be mounted only in the CPU Unit Option Board slot 1.
Note: Cannot be used for the CP1L-L10.

CP1W-DAM01

UC1,

Memory
Cassette

Can be used for backing up programs or auto-booting.

CP1W-ME05M

UC1, N,
L, CE


Программные продукты

Name

Specifications

Model

Standards



Number
of
licenses

Media

CX-One FA
IntegratedTool
Package Ver. 2.[]
(See notes 1,
2 and 3.)

CX-One is a package that integrates
the Support Software for OMRON.
PLCs and components.
CX-One runs on the following OS.
OS: Windows 98SE, Me, NT 4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista
CX-One Ver. 2.[] includes
CX-Programmer Ver. 7.[].

1
license

CD

CXONE-AL01C-EV2

---

DVD

CXONE-AL01D-EV2

3
licenses

CD

CXONE-AL03C-EV2

DVD

CXONE-AL03D-EV2

10
licenses

CD

CXONE-AL10C-EV2

DVD

CXONE-AL10D-EV2

30
licenses

CD

CXONE-AL30C-EV2

DVD

CXONE-AL30D-EV2

50
licenses

CD

CXONE-AL50C-EV2

DVD

CXONE-AL50D-EV2

CX-Programmer can still be ordered individually in the following model number.



CX-Programmer
Ver. 7.[]
(See note 4.)

PLC Support Software
OS: Windows 98SE, Me, NT 4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista

1
license

CD

WS02-CXPC1-E-V7[]

---

3
licenses

CD

WS02-CXPC1-E03-V7[]

10
licenses

CD

WS02-CXPC1-E10-V7[]

FA Integrated
Tool Package
CX-One Lite
Version 2.[]

CX-One runs on the following OS.
Windows 98SE, Me, NT 4.0(Service
Pack 6a), 2000(Service Pack 3 or
higher), XP, or Vista
CX-One Lite is a subset (see note 5.)
of the complete
CX-One package that provides only
the Support Software required for
micro PLC applications. It can be used
only with micro PLCs. (See note 6.)

1
license

CD

CXONE-LT01C-EV2

---

Micro PLC Edition CX-Programmer can still be ordered individually in the following model numbers.



Micro PLC Edition
CX-Programmer
Ver.7.[]
(See note 7.)

PLC Support Software
OS: Windows 98SE, Me, NT4.0
(Service Pack 6a), 2000 (Service
Pack 3 or higher), XP, or Vista
Applicable models: CP1L, CP1H,
CPM[][], SRM1

1
license

CD

WS02-CXPC1-EJ-V7[]

---

Programming
Device
Connecting
Cable for
CP1W-CIF01
RS-232C
Option Board
(See note 8.)

Connects DOS computers,
D-Sub 9-pin (Length: 2.0 m)

For anti-static
connectors

XW2Z-200S-CV

---

Connects DOS computers,
D-Sub 9-pin (Length: 5.0 m)

XW2Z-500S-CV

Connects DOS computers, D-Sub 9-pin (Length: 2.0 m)

XW2Z-200S-V

Connects DOS computers, D-Sub 9-pin (Length: 5.0 m)

XW2Z-500S-V



USB-Serial
Conversion
Cable
(See note 8.)

USB-RS-232C Conversion Cable (Length: 0.5 m) and
PC driver (on a CD-ROM disc) are included.
Complies with USB Specification 1.1
On personal computer side: USB (A plug connector, male)
On PLC side: RS-232C (D-sub 9-pin, male)
Driver: Supported by Windows 98, Me, 2000, and XP

CS1W-CIF31

N


Модули расширения

Name

Output method

Inputs

Outputs

Model

Standards

Expansion I/O
Units

Relay

24

16

CP1W-40EDR

N, L, CE

Transistor (sinking)

CP1W-40EDT

Transistor (sourcing)

CP1W-40EDT1

Relay

---

32

CP1W-32ER

---

Transistor (sinking)

CP1W-32ET

Transistor (sourcing)

CP1W-32ET1

Relay

12

8

CP1W-20EDR1

U, C, L, CE

Transistor (sinking)

CP1W-20EDT

U, C, N,
L, CE

Transistor (sourcing)

CP1W-20EDT1

Relay

---

16

CP1W-16ER

CE

Transistor (sinking)

CP1W-16ET

---

Transistor (sourcing)

CP1W-16ET1

---

8

---

CP1W-8ED

U, C, N,
L, CE

Relay

---

8

CP1W-8ER

Transistor (sinking)

8

CP1W-8ET

Transistor (sourcing)

CP1W-8ET1

Analog Input
Unit

Analog
(resolution: 1/6000)

4

---

CP1W-AD041

UC1, N,
L, CE

Analog Output
Unit

Analog
(resolution: 1/6000)

---

4

CP1W-DA041

Analog I/O
Unit

Analog
(resolution: 1/6000)

2

1

CP1W-MAD11

U, C, N,
L, CE

CompoBus/S
I/O Link Unit

---

8
(I/O link
input bits)

8
(I/O link
input bits)

CP1W-SRT21

U, C, N,
L, CE

Temperature
Sensor Unit

2 thermocouple inputs

CP1W-TS001

4 thermocouple inputs

CP1W-TS002

2 platinum resistance thermometer inputs

CP1W-TS101

4 platinum resistance thermometer inputs

CP1W-TS102


Кабель связи

Name

Specifications

Model

Standards

I/O Connecting Cable

80 cm (for CP1W/CPM1A Expansion Units)

CP1W-CN811

UC1, N, L, CE


Дополнительные аксессуары

Name

Specifications

Model

Standards

Battery Set

For CP1H CPU Units
(Use batteries within two years of manufacture.)

CJ1W-BAT01

CE

DIN Track

Length: 0.5 m; Height: 7.3 mm

PFP-50N

---

Length: 1 m; Height: 7.3 mm

PFP-100N

Length: 1 m; Height: 16 mm

PFP-100N2



End Plate

There are 2 stoppers provided with CPU Units and I/O Interface Units
as standard accessories to secure the Units on the DIN Track.

PFP-M


Модули контроллера серии CJ OMRON

Category

Name

Specifications

Model

Standards

CP1H CPU
Unit options

CJ Unit Adapter

Adapter for connecting CJ-series Special I/O
Units and CPU Bus Units (includes CJ-series
End Cover)

CP1W-EXT01

UC1, N,
L, CE

CJ-series
Special I/O
Units

Analog Input Units

8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V,
-10 to 10 V, 4 to 20 mA)
Resolution: 1/8,000, Conversion speed:
250
μs/input max.
(Can be set to 1/4,000 resolution and 1
ms/input.)

CJ1W-AD081-V1

4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V,
-10 to 10 V, 4 to 20 mA)
Resolution: 1/8,000, Conversion speed:
250
μs/input max.
(Can be set to 1/4,000 resolution and 1
ms/input.)

CJ1W-AD041-V1

Analog Output
Units

8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V,
-10 to 10 V)
Resolution: 1/4,000; Conversion speed:
1 ms/output max.
(Can be set to 1/8000, 250 μs/output.)

CJ1W-DA08V

8 outputs (4 to 20 mA)
Resolution: 1/4,000; Conversion speed:
1 ms/output max.
(Can be set to 1/8,000, 250 μs/ output.)

CJ1W-DA08C

UC1, CE

4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V,
-10 to 10 V, 4 to 20 mA)
Resolution: 1/4,000, Conversion speed:
1ms/point max.

CJ1W-DA041

UC1, N,
L, CE

2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V,
-10 to 10 V, 4 to 20 mA)
Resolution: 1/4,000, Conversion speed:
1ms/point max.

CJ1W-DA021

Analog I/O Unit

4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to
10 V, -10 to 10 V, 4 to 20 mA)
Resolution: 1/4000; Conversion speed:
1 ms/point max.
(Can be set to 1/8,000, 500 μs/point.)

CJ1W-MAD42

Process Input
Units

4 fully universal inputs:
Pt100 (3-wire), JPt100 (3-wire), Pt1000
(3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R,
S, B, WRe5-26, PLII, 4 to 20 mA,
0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V,
0 to 10 V, ±100-mV selectable range,
-1.25 to 1.25 V, -5 to 5 V, -10 to 10 V,
±10-V selectable range
Potentiometer resolution/conversion speed:
1/256,000 (conversion cycle: 60 ms/4 points),
1/64,000 (conversion cycle: 10 ms/4 points),
1/16,000 (conversion cycle: 5 ms/4 points)

CJ1W-PH41U
(See note 1.)

UC1, CE

4 fully universal inputs:
Pt100, JPt100, Pt1000, K, J, T, L, R, S, B,
4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V,
0 to 10 V
Conversion speed: 250 ms/4 points

CJ1W-AD04U

L, CE

4 inputs, B, J, K, L, R, S, T; Conversion
speed: 250 ms/4 inputs

CJ1W-PTS51

UC1, CE

4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω,
Conversion speed: 250 ms/4 inputs

CJ1W-PTS52

2 inputs, B, E, J, K, L, N, R, S, T, U, W,
Re5-26, PL ±100 mV,
Resolution: 1/64,000; Conversion speed:
10 ms/2 inputs

CJ1W-PTS15

2 inputs, Pt100, JPt100, Pt50, Ni508.4;
Resolution: 1/64,000; Conversion speed:
10 ms/2 inputs

CJ1W-PTS16

2 inputs, 0 to 1.25 V, -1.25 to 1.25 V,
0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V,
-10 to 10 V, ±10-V selectable range,
0 to 20 mA, 4 to 20 mA

CJ1W-PDC15

Temperature
Control Units

4 loops, thermocouple input, NPN output

CJ1W-TC001

4 loops, thermocouple input, PNP output

CJ1W-TC002

2 loops, thermocouple input, NPN output,
heater burnout detection function

CJ1W-TC003

2 loops, thermocouple input, PNP output,
heater burnout detection function

CJ1W-TC004

4 loops, platinum resistance thermometer
input, NPN output

CJ1W-TC101

4 loops, platinum resistance thermometer
input, PNP output

CJ1W-TC102

2 loops, platinum resistance thermometer
input, NPN output, heater burnout
detection function

CJ1W-TC103

2 loops, platinum resistance thermometer
input, PNP output, heater burnout
detection function

CJ1W-TC104

High-speed
Counter Unit

2 inputs, max. input frequency: 500 kpps

CJ1W-CT021

UC1, N,
L, CE

Position
Control Units

Pulse train, open collector output, 1 axis

CJ1W-NC113

UC1, CE

Pulse train, open collector output, 2 axes

CJ1W-NC213

Pulse train, open collector output, 4 axes

CJ1W-NC413

Pulse train, line driver output, 1 axis

CJ1W-NC133

Pulse train, line driver output, 2 axes

CJ1W-NC233

Pulse train, line driver output, 4 axes

CJ1W-NC433

Space Unit

---

CJ1W-SP001

ID Sensor Units

For V680 Series, 1 R/W Head

CJ1W-V680C11

UC pending,
CE

For V680 Series, 2 R/W Heads

CJ1W-V680C12

For V600 Series, 1 R/W Head

CJ1W-V600C11

UC, CE

For V600 Series, 2 R/W Heads

CJ1W-V600C12

CompoNet
Master Unit

Word slaves: 2,048 points,
Bit slaves: 512 points

CJ1W-CRM21

U, U1, CE

CompoBus/S
Master Unit

CompoBus/S remote I/O, 256 points max.

CJ1W-SRM21

UC1, N,
L, CE

CJ-series
CPU Bus
Units

Controller
Link Units

Wired (shielded twisted-pair cable)

CJ1W-CLK23

UC1, N,
L, CE

Serial
Communications
Units

1 RS-232C port and 1 RS-422A/485 port

CJ1W-SCU41-V1

UC1, N,
L, CE

2 RS-232C ports

CJ1W-SCU21-V1

2 RS-422A/485 ports

CJ1W-SCU31-V1

Ethernet Unit

100Base-TX

CJ1W-ETN21

DeviceNet Unit

Functions as master and/or slave;
allows control of 32,000 points max.
per master.

CJ1W-DRM21

Position Control
Unit

MECHATROLINK-II Position Control Unit

CJ1W-NCF71

UC1, CE

MECHATROLINK-II
Motion Control Unit

Real axes: 30, Virtual axes:
2, Special motion control language

CJ1W-MCH71

Fl-net Unit

100Base-TX

CJ1W-FLN22

SYSMAC SPU

High-speed data collection unit

CJ1W-SPU01-V2


ТЕХНИЧЕСКАЯ ДОКУМЕНТАЦИЯ OMRON CP1H
Технические данные OMRON CP1H (4 343 kb)
Техническая документация OMRON CP1H (English) (6 180 kb)

НАЗАД >>>


|главная страница|компоненты OMRON|документация OMRON|техническая поддержка|контакты|

www.Proenergo.Ru
