Power
supply
voltage |
Output
configuration |
Resolution (pulses/rotation) |
Model |
5 to 24 VDC |
NPN open-
collector output |
10, 20, 30,
40, 50, 60, 100, 200, 300, 360, 400, 500, 600 |

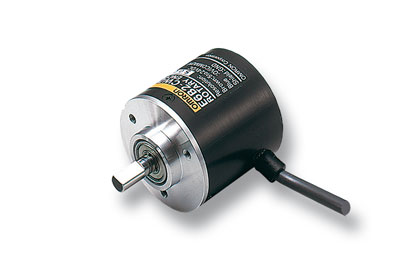

E6B2-CWZ6C |
720, 800,
1,000, 1,024 |
1,200,
1,500, 1,800, 2,000 |
12 to 24
VDC |
PNP open-
collector output |
100, 200,
360, 500, 600 |
E6B2-CWZ5B |
1,000 |
2,000 |
5 to 12 VDC |
Voltage
output |
10, 20, 30,
40, 50, 60, 100, 200, 300, 360, 400, 500, 600 |
E6B2-CWZ3E |
1,000 |
1,200,
1,500, 1,800, 2,000 |
5 VDC |
Line-driver
output |
10, 20, 30,
40, 50, 60, 100, 200, 300, 360, 400, 500, 600 |
E6B2-CWZ1X |
1,000,
1,024 |
1,200,
1,500, 1,800, 2,000 |
|
